設計壓力：罐內 FV~0.25 MPA 夾套0 .6MPA

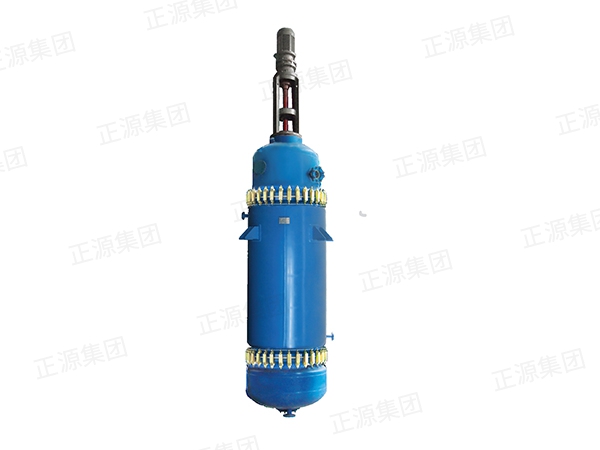

搪玻璃薄膜蒸發器內部與液態或氣態物料直接接觸的部位均為玻璃或PTFE等非金屬材質，特別適用于強腐蝕介質蒸發、禁止金屬離子析入的物料、高粘度物料處理、熱敏性物料處理以及高沸點物料的蒸發處理等場合。
|
系列 |
WFE 系列 |
||||||||||
|
規格型號 |
0.25 |
0.5 |
1.0 |
2.0 |
3.0 |
4.0 |
5.0 |
6.0 |
8.0 |
10 |
16 |
|
D1 mm |
219 |
300 |
500 |
600 |
600 |
800 |
900 |
900 |
1000 |
1200 |
1600 |
|
D2 mm |
325 |
400 |
600 |
700 |
700 |
900 |
1000 |
1000 |
1100 |
1350 |
1750 |
|
L mm |
650 |
800 |
900 |
1350 |
1850 |
1830 |
2010 |
2500 |
2800 |
3050 |
3500 |
|
A mm |
385 |
425 |
650 |
845 |
845 |
880 |
905 |
905 |
925 |
1310 |
1565 |
|
B mm |
185 |
205 |
265 |
545 |
545 |
650 |
680 |
680 |
705 |
760 |
925 |
|
C mm |
900 |
1155 |
1225 |
1380 |
1380 |
1668 |
1653 |
1590 |
1890 |
1307 |
2130 |
|
H mm |
2470 |
2840 |
3321 |
4453 |
4983 |
5135 |
5450 |
6074 |
6629 |
6460 |
8150 |
|
h mm |
330 |
350 |
365 |
475 |
475 |
475 |
475 |
800 |
800 |
800 |
800 |
|
傳熱面積 |
0.31 |
0.57 |
1.08 |
2.1 |
3 |
4.04 |
5.11 |
6 |
8.0 |
11.5 |
16.6 |
|
電機功率 |
0.75 |
1.5 |
1.5 |
2.2 |
3.0 |
4.0 |
5.5 |
5.5 |
7.5 |
7.5 |
7.5 |
|
壁厚 (內筒 / 夾套) |
8/6 |
8/6 |
8/6 |
10/8 |
10/8 |
10/8 |
12/8 |
12/8 |
12/8 |
14/10 |
18/10 |
|
設備重量 |
245 |
385 |
626 |
1090 |
1380 |
1872 |
2370 |
3017 |
3500 |
5000 |
7330 |
注：表中所列的傳熱面積不包括下封頭的傳熱面積。
|
系列 |
WFE 系列 |
||||||||||
|
規格型號 |
0.25 |
0.5 |
1.0 |
2.0 |
3.0 |
4.0 |
5.0 |
6.0 |
8.0 |
10 |
16 |
|
D1 mm |
219 |
300 |
500 |
600 |
600 |
800 |
900 |
900 |
1000 |
1200 |
1600 |
|
D2 mm |
325 |
400 |
600 |
700 |
700 |
900 |
1000 |
1000 |
1100 |
1350 |
1750 |
|
L mm |
650 |
800 |
900 |
1350 |
1850 |
1830 |
2010 |
2500 |
2800 |
3050 |
3500 |
|
A mm |
385 |
425 |
650 |
845 |
845 |
880 |
905 |
905 |
925 |
1310 |
1565 |
|
B mm |
185 |
205 |
265 |
545 |
545 |
650 |
680 |
680 |
705 |
760 |
925 |
|
C mm |
900 |
1155 |
1225 |
1380 |
1380 |
1668 |
1653 |
1590 |
1890 |
1307 |
2130 |
|
H mm |
2470 |
2840 |
3321 |
4453 |
4983 |
5135 |
5450 |
6074 |
6629 |
6460 |
8150 |
|
h mm |
330 |
350 |
365 |
475 |
475 |
475 |
475 |
800 |
800 |
800 |
800 |
|
傳熱面積 |
0.31 |
0.57 |
1.08 |
2.1 |
3 |
4.04 |
5.11 |
6 |
8.0 |
11.5 |
16.6 |
|
電機功率 |
0.75 |
1.5 |
1.5 |
2.2 |
3.0 |
4.0 |
5.5 |
5.5 |
7.5 |
7.5 |
7.5 |
|
壁厚 (內筒 / 夾套) |
8/6 |
8/6 |
8/6 |
10/8 |
10/8 |
10/8 |
12/8 |
12/8 |
12/8 |
14/10 |
18/10 |
|
設備重量 |
245 |
385 |
626 |
1090 |
1380 |
1872 |
2370 |
3017 |
3500 |
5000 |
7330 |
注：表中所列的傳熱面積不包括下封頭的傳熱面積。
|
規格型號 |
a |
b |
c |
d |
e1 |
e2 |
f |
g1 |
g2 |
h1 |
h2 |
m1 |
m2 |
m3 |
|
WFE-0.25 |
50 |
50 |
/ |
50 |
/ |
/ |
25 |
20 |
/ |
20 |
/ |
G1/2" |
/ |
G1/2" |
|
WFE-0.5 |
65 |
65 |
/ |
65 |
/ |
/ |
50 |
25 |
/ |
25 |
/ |
G1/2" |
/ |
G1/2" |
|
WFE-1.0 |
80 |
50 |
/ |
100 |
100 |
100 |
65 |
40 |
/ |
40 |
/ |
G1/2" |
/ |
G1/2” |
|
WFE-2.0 |
125 |
50 |
50 |
125 |
100 |
100 |
80 |
50 |
50 |
50 |
50 |
G1/2" |
G1/2" |
G1/2” |
|
WFE-3.0 |
125 |
50 |
50 |
125 |
100 |
100 |
80 |
50 |
50 |
50 |
50 |
G1/2” |
G1/2" |
G1/2" |
|
WFE-4.0 |
125 |
50 |
50 |
150 |
100 |
100 |
80 |
50 |
50 |
50 |
50 |
G1/2" |
G1/2" |
G1/2" |
|
WFE-5.0 |
125 |
50 |
50 |
150 |
100 |
100 |
100 |
50 |
50 |
50 |
50 |
G1/2" |
G1/2" |
G1/2" |
|
WFE-6.0 |
125 |
50 |
50 |
200 |
100 |
100 |
100 |
65 |
50 |
50 |
50 |
G1/2" |
G1/2" |
G1/2” |
|
WFE-8.0 |
150 |
50 |
65 |
250 |
125 |
125 |
100 |
65 |
50 |
50 |
50 |
G1/2" |
G1/2" |
G1/2" |
|
WFE-10 |
150 |
50 |
65 |
300 |
125 |
125 |
100 |
80 |
50 |
50 |
50 |
G1/2" |
G1/2" |
G1/2” |
|
WFE-16 |
150 |
80 |
125/65 |
400 |
125 |
125 |
150 |
100 |
50 |
80 |
50 |
G1/2" |
G1/2" |
G1/2" |
注：可根據客戶的特殊要求變更管口數量或規格。
|
規格型號 |
a |
b |
c |
d |
e1 |
e2 |
f |
g1 |
g2 |
h1 |
h2 |
m1 |
m2 |
m3 |
|
WFE-0.25 |
50 |
50 |
/ |
50 |
/ |
/ |
25 |
20 |
/ |
20 |
/ |
G1/2" |
/ |
G1/2" |
|
WFE-0.5 |
65 |
65 |
/ |
65 |
/ |
/ |
50 |
25 |
/ |
25 |
/ |
G1/2" |
/ |
G1/2" |
|
WFE-1.0 |
80 |
50 |
/ |
100 |
100 |
100 |
65 |
40 |
/ |
40 |
/ |
G1/2" |
/ |
G1/2” |
|
WFE-2.0 |
125 |
50 |
50 |
125 |
100 |
100 |
80 |
50 |
50 |
50 |
50 |
G1/2" |
G1/2" |
G1/2” |
|
WFE-3.0 |
125 |
50 |
50 |
125 |
100 |
100 |
80 |
50 |
50 |
50 |
50 |
G1/2” |
G1/2" |
G1/2" |
|
WFE-4.0 |
125 |
50 |
50 |
150 |
100 |
100 |
80 |
50 |
50 |
50 |
50 |
G1/2" |
G1/2" |
G1/2" |
|
WFE-5.0 |
125 |
50 |
50 |
150 |
100 |
100 |
100 |
50 |
50 |
50 |
50 |
G1/2" |
G1/2" |
G1/2" |
|
WFE-6.0 |
125 |
50 |
50 |
200 |
100 |
100 |
100 |
65 |
50 |
50 |
50 |
G1/2" |
G1/2" |
G1/2” |
|
WFE-8.0 |
150 |
50 |
65 |
250 |
125 |
125 |
100 |
65 |
50 |
50 |
50 |
G1/2" |
G1/2" |
G1/2" |
|
WFE-10 |
150 |
50 |
65 |
300 |
125 |
125 |
100 |
80 |
50 |
50 |
50 |
G1/2" |
G1/2" |
G1/2” |
|
WFE-16 |
150 |
80 |
125/65 |
400 |
125 |
125 |
150 |
100 |
50 |
80 |
50 |
G1/2" |
G1/2" |
G1/2" |
注：可根據客戶的特殊要求變更管口數量或規格。
電話：025-57255189/13376073907
采購：025-57258357/18951032006
郵箱：chen1101982@163.com
地址：江蘇南京市溧水區白馬鎮工業園
